Absolute measuring system SAM

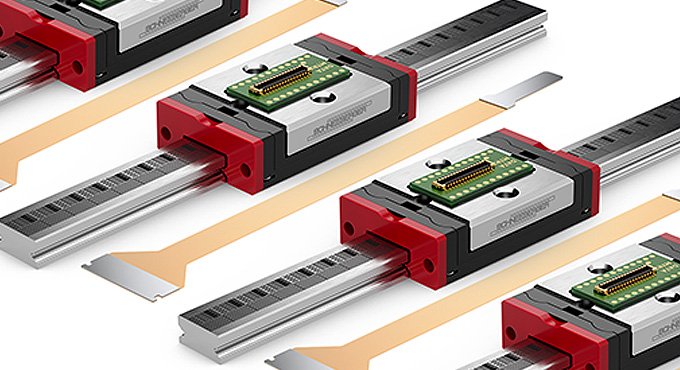

The new SCHNEEBERGER absolute measuring system is another step into Industrial 4.0 linear bearings. 3 out of 5 Interfaces can be used simultaneously: BiSS/SSI, ABZ, UVW, SPI, analog Sin/Cos. Available from the smallest linear miniature guide MINIRAIL Size 5.

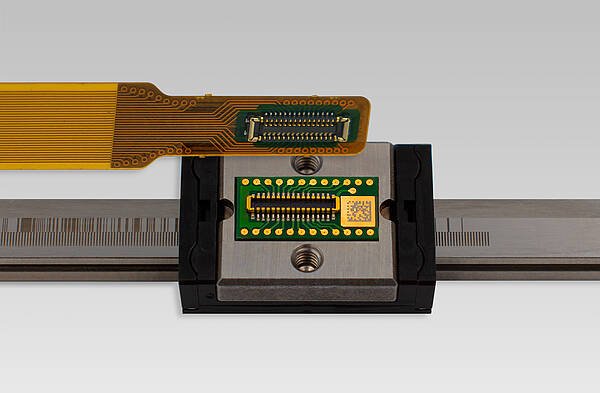

Smart Plug Connection For FPC's

Scale Lasered On Guide Rail

Customized For You Need

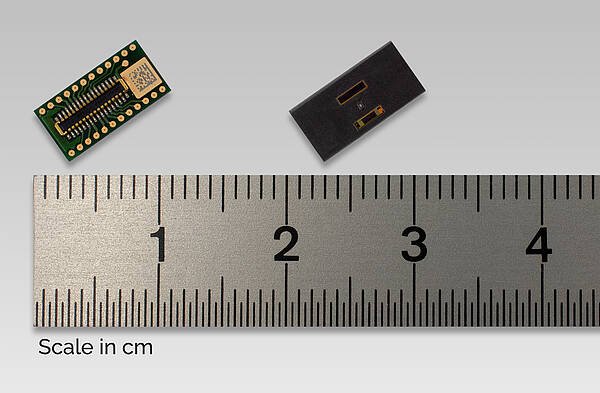

Smallest Integrated Absolut Sensor

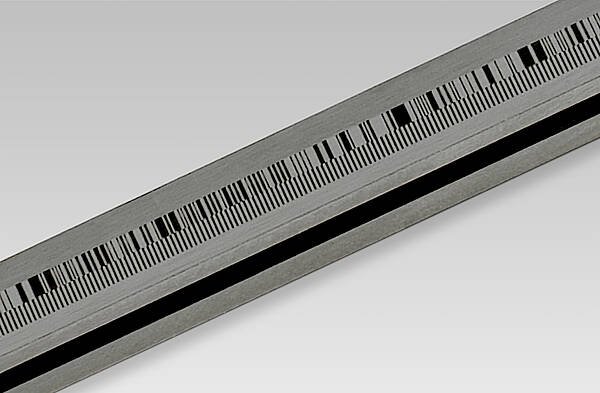

Scale lasered directly onto guide rail

· Calibrated parameter values stored on the sensor’s internal EEPROM

· Sensor with miniature connector

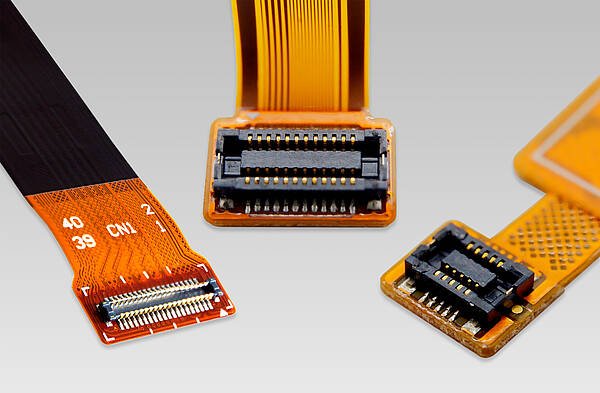

· Customer specific flexprint design

· Signal conditioning (offset, amplitude, phase) with autocalibration

· Linear resolution 100 nm

· Absolut position accuracy: < 2 μm (3-Sigma)

· Sensor dimension: 9.9 x 5.0 x 1.1 mm

· Patent pending
